P6-LBC - Looping Blades For Concrete

Vendor: Premier Diamond

Type: Blade

£288.04 (Ex VAT)

£288.04

Blade Size: 350 x 8.0 x 10 x 25.4mm (14")

350 x 8.0 x 10 x 25.4mm (14") 350 x 10 x 10 x 25.4mm (14")

Product Description

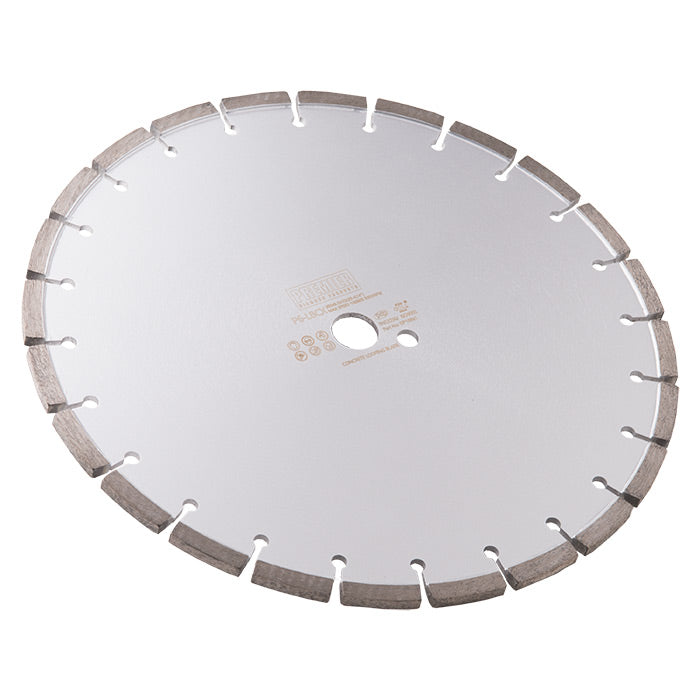

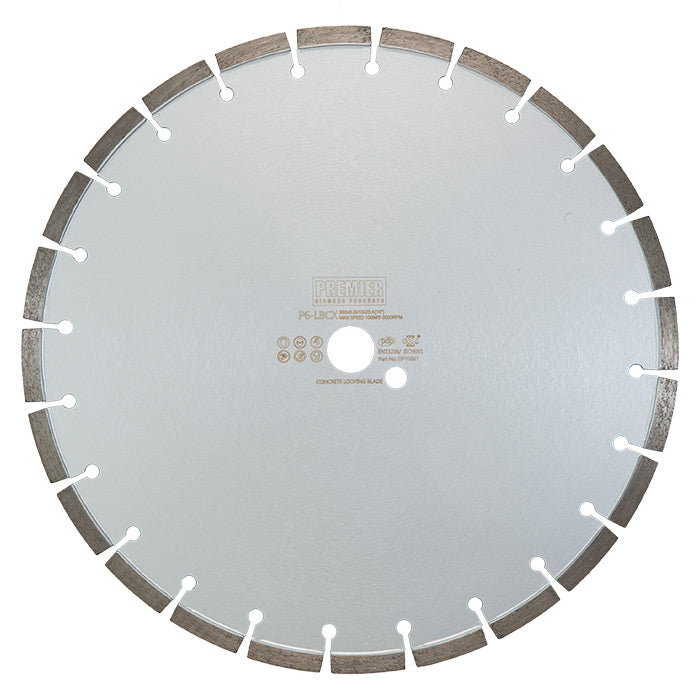

The P6-LBC looping diamond blade is available in 350mm (14") diameter with either 8 or 10mm wide segments. They are used on floor saw machines for cutting wide channels in the surface when preparing for the installation of traffic detector loop management systems; this is a sub-surface method of identifying the presence of a vehicle at traffic lights and security barriers.

Additional Details

Suitable For Use On :

Concrete - Flint Aggregate

Concrete - General Purpose

Concrete - Heavy Steel Reinforcement

Concrete - Light Steel Reinforcement

Compatibility & Standards :

Machine Suitability :

Floor Saw

Standards :

EN13236: European Standard that regulates the safety requirements for super abrasive (diamond) products

The Organisation for the safety of Abrasives (osa): Members of osa have to imply strict manufacturing, quality and safety procedures in accordance to EN13236.

Usage Advice :

Make certain the blade is suitable for the material before cutting.

Guide the blade straight into the material.

Do not use unnecessary pressure, the weight of the machine is sufficient.

Carry out a slight pendulum movement (forwards, backwards).

If cutting speed reduces you can re-sharpen (dress) diamond segments by making several passes into a highly abrasive material such as a 3-Newton concrete or cinder (breeze) block.
