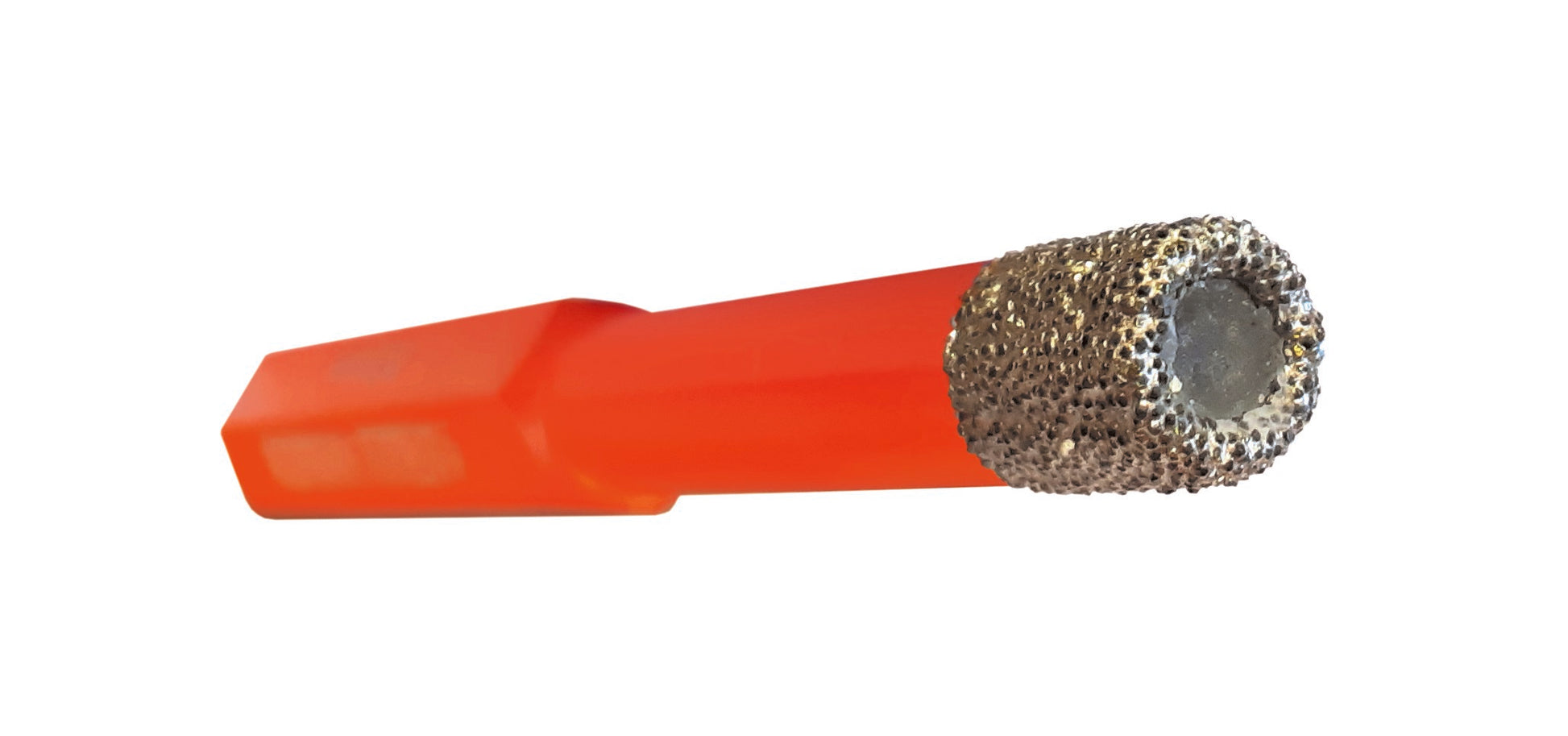

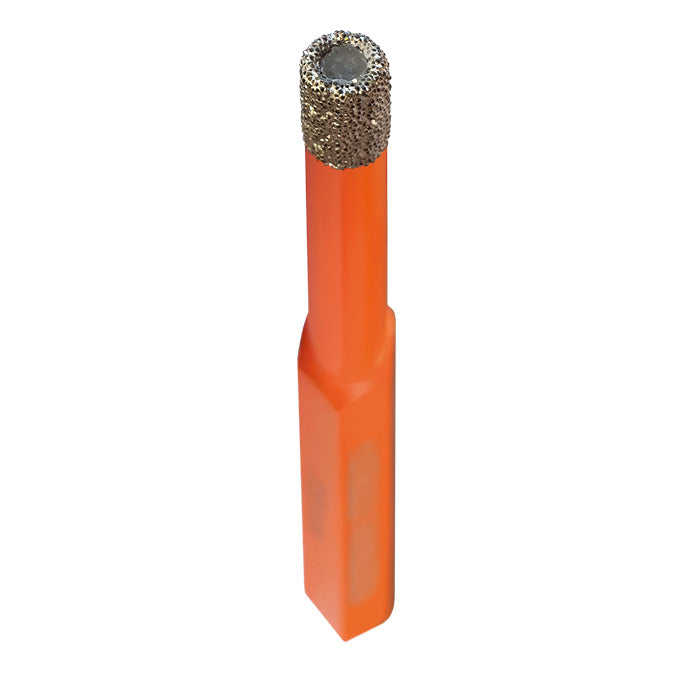

P6-ATD - Wax Filled Diamond Tile Drill

Vendor: Premier Diamond

Type: Blade

£24.12 (Ex VAT)

£24.12

Bit Size: 5 x 67mm

5 x 67mm 6 x 67mm 7 x 67mm 8 x 67mm 10 x 80mm 12 x 80mm

Product Description

Our range of auto-cool diamond tile drills are filled with a lubricating wax. During the drilling process the leading edge of the wax melts and auto- cools the diamonds, meaning there is no need to apply a secondary coolant, such as water. With hexagonal fitting for use in cordless and corded drills.

Additional Details

Suitable For Use On :

Tiles - Ceramic

Tiles - Granite

Tiles - Limestone

Tiles - Marble

Tiles - Porcelain

Tiles - Slate

Compatibility & Standards :

Machine Suitability :

Cordless Drill

Corded Drill

Standards :

EN13236: European Standard that regulates the safety requirements for super abrasive (diamond) products

Usage Advice :

Mark the tile and place the drill tip at a 45-degree angle.

Start drilling and level the drill once the tile surface is scored.

Drill using a slight oscillating motion until the hole is complete.

If drilling continuous holes, it is recommended to dip the drill tip in water after each hole to re-solidify the wax.

Do not use unnecessary pressure, the weight of the machine is sufficient.

Use at speeds between 800 - 2000rpm.
