P5-VBHS - Vacuum Brazed Diamond Hole Saws

Product Description

These special diamond hole saws benefit from fully exposed diamonds that are vacuum brazed directly to the cutting edge. Vacuum brazing is a material joining process which offers significant advantages in terms of cleanliness, joint strength and integrity making the hole saws durable and convenient to use when drilling a vast variety of materials. They are especially good for drilling porcelain.

Features: Fully exposed diamonds joined by a vacuum brazing process, 10mm hexagonal fitting and pilot drill (supplied) to aid start up.

Additional Details

Suitable For Use On :

Bricks - Class A Engineering

Bricks - Class B Engineering

Bricks - Standard Facing Bricks

Cement Fibre Board

Clay Products

Composite Cladding and Panels

Concrete - Roof Tiles

Concrete Blocks - Lightweight 3 to 7 Newton

Concrete Blocks - Medium Density 7 to 12 Newton

Concrete Blocks - Solid Density 12+ Newton

Earthstone Worktops

Fibreglass

Glass Reinforced Plastic (GRP)

Granite - Blocks and Worktops

Laminated Products

Limestone

Marble - Blocks and Worktops

PE Polyethylene Plastic

PP Polypropylene Plastic

Quartz Worktops

Sandstone - Abrasive

Sandstone - Indian

Tiles - Ceramic

Tiles - Granite

Tiles - Limestone

Tiles - Marble

Tiles - Porcelain

Tiles - Slate

Compatibility & Standards :

Machine Suitability :

Cordless Drill

Corded Drill

Standards :

EN13236: European Standard that regulates the safety requirements for super abrasive (diamond) products

Usage Advice :

Use the pilot drill to aid start up.

Before drilling porcelain, pre-drill a 6mm pilot hole using a diamond tile drill.

For best results when drilling tiles, apply a fine mist of water via a hand-held spray bottle.

Do not use unnecessary pressure, the weight of the machine is sufficient.

Using a slight oscillating motion whilst drilling can increase speed on some materials.

Use at speeds between 800 - 2000rpm.

For harder tiles use a slower rpm / for softer tiles use a faster rpm.

Quick order list

Your cart
Variant	Quantity	Price	Variant total

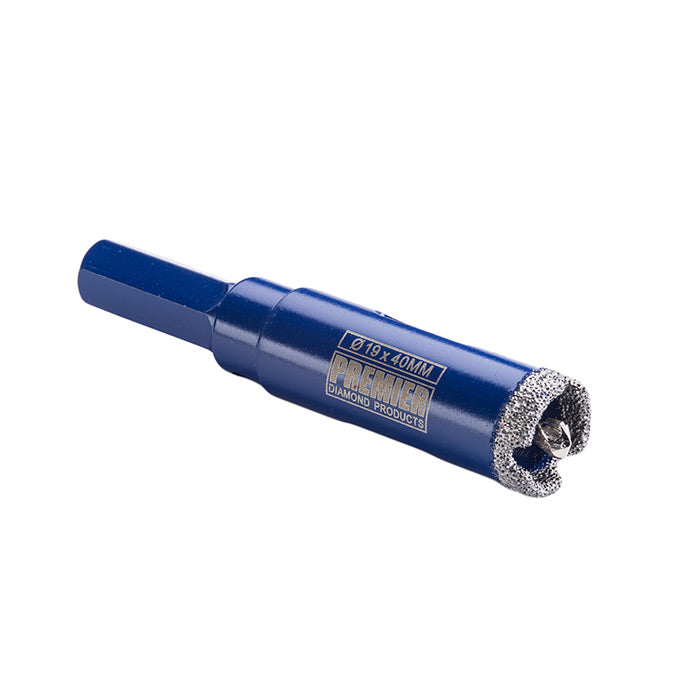

19 x 45mmDP16389 £20.74/ea Remove Quantity Remove £0.00	Quantity Remove	£20.74/ea	£0.00

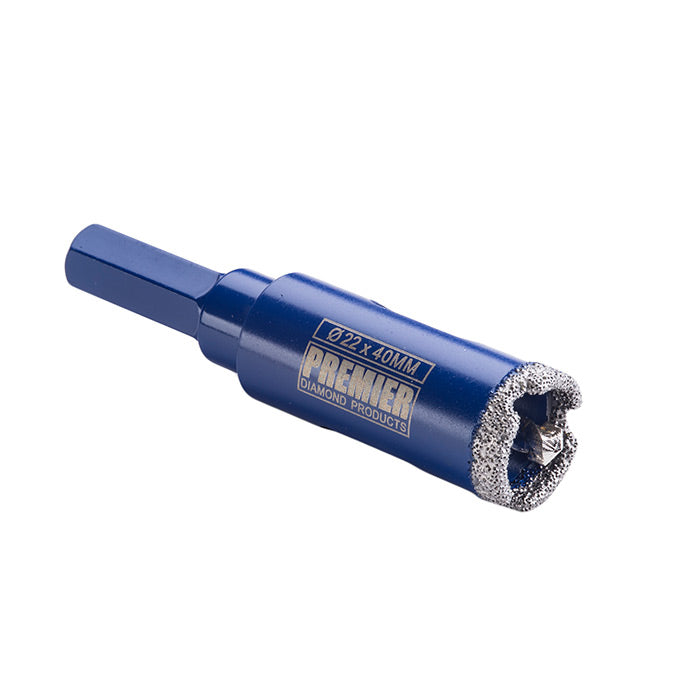

22 x 44mmDP16392 £20.74/ea Remove Quantity Remove £0.00	Quantity Remove	£20.74/ea	£0.00

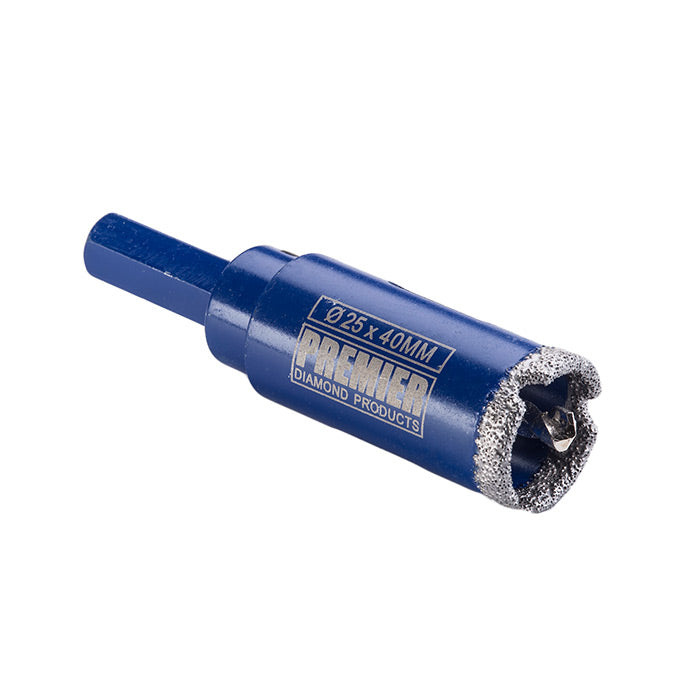

25 x 45mmDP16393 £23.44/ea Remove Quantity Remove £0.00	Quantity Remove	£23.44/ea	£0.00

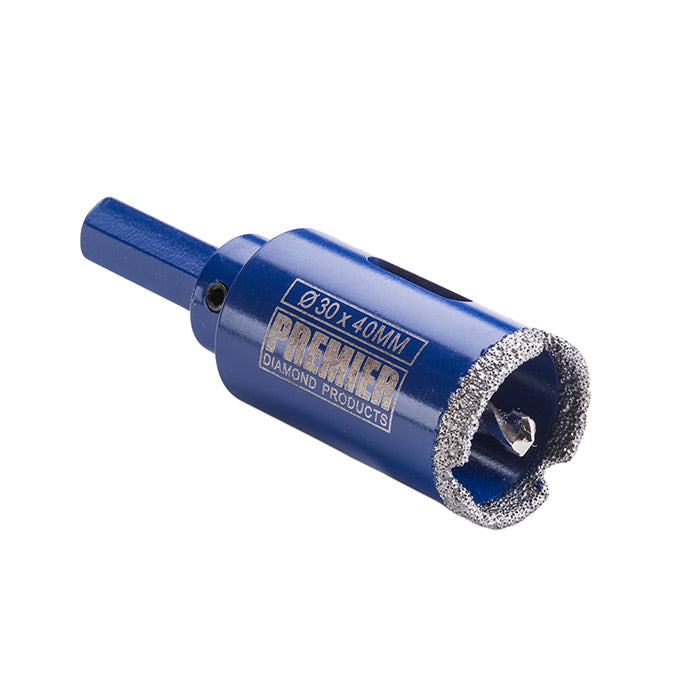

30 x 45mmDP16395 £28.36/ea Remove Quantity Remove £0.00	Quantity Remove	£28.36/ea	£0.00

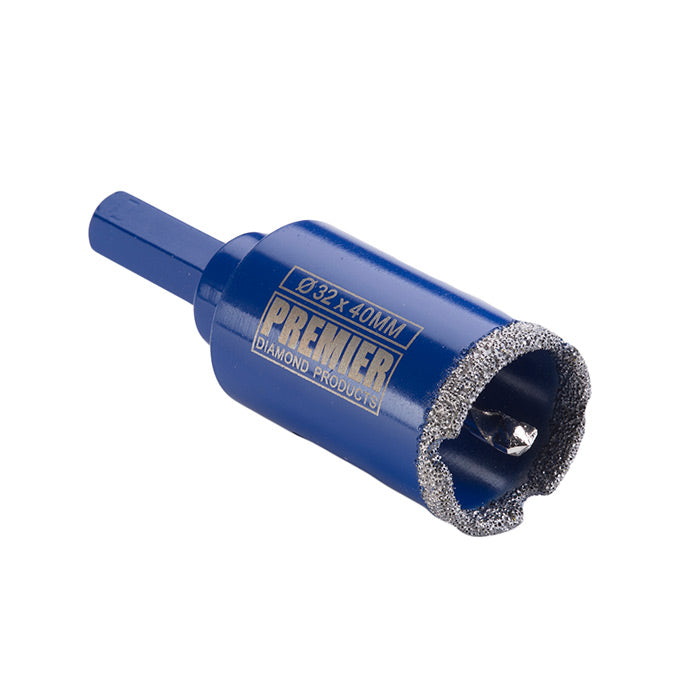

32 x 45mmDP16396 £29.66/ea Remove Quantity Remove £0.00	Quantity Remove	£29.66/ea	£0.00

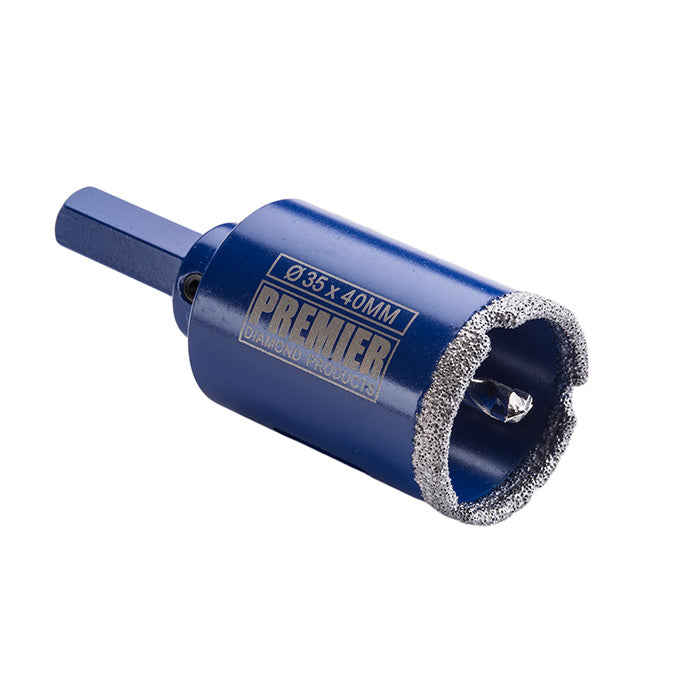

35 x 45mmDP16398 £32.92/ea Remove Quantity Remove £0.00	Quantity Remove	£32.92/ea	£0.00

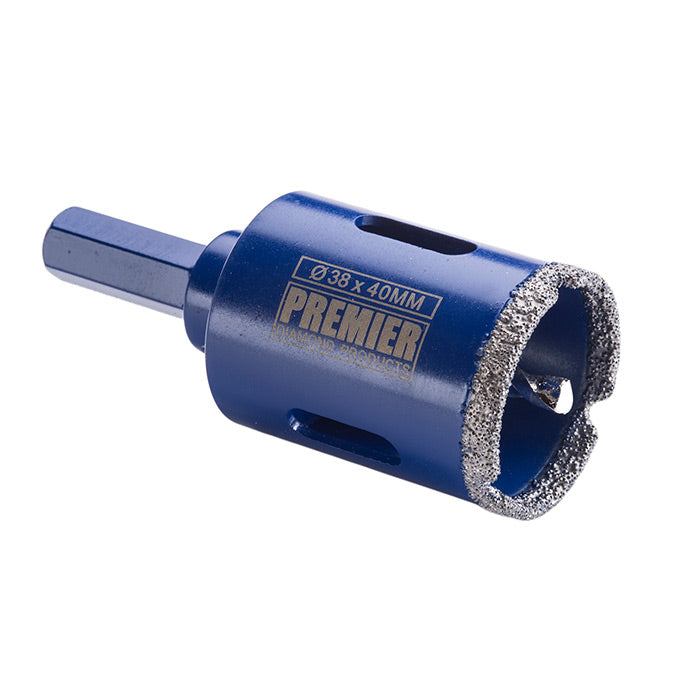

38 x 45mmDP16401 £35.56/ea Remove Quantity Remove £0.00	Quantity Remove	£35.56/ea	£0.00

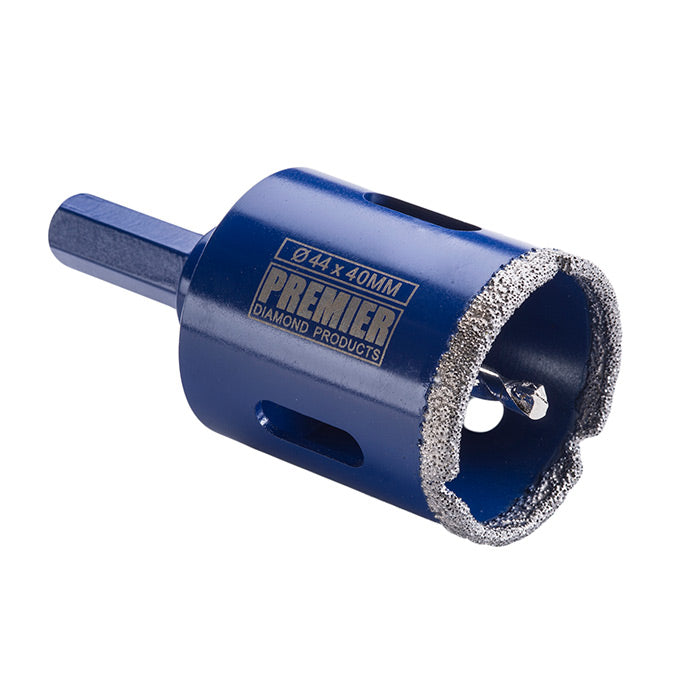

44 x 45mmDP16404 £40.68/ea Remove Quantity Remove £0.00	Quantity Remove	£40.68/ea	£0.00

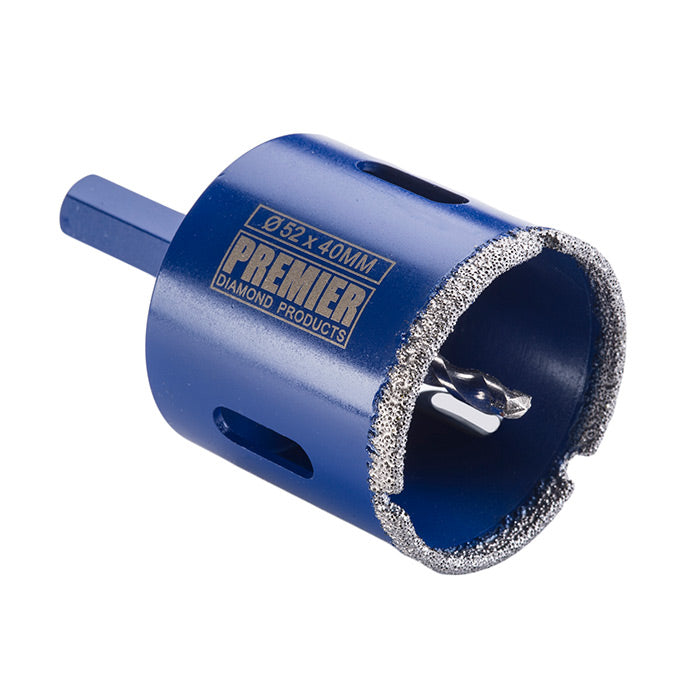

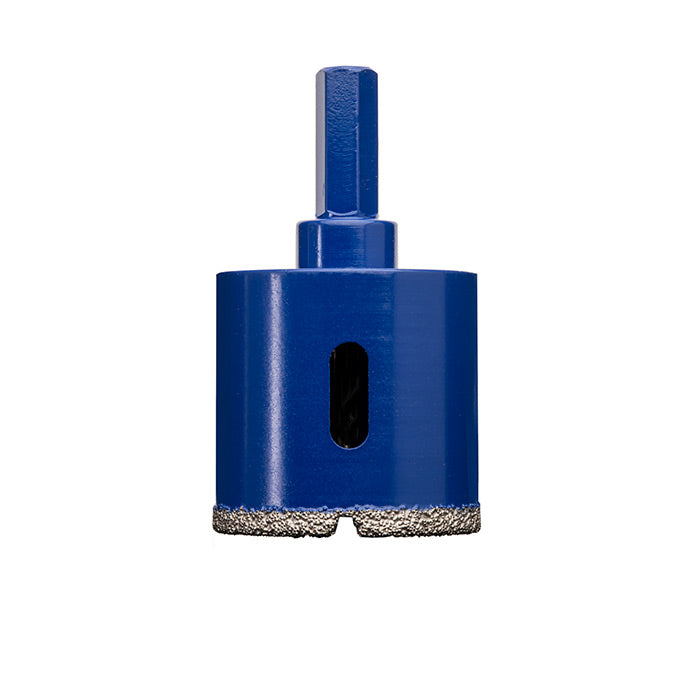

52 x 45mmDP16407 £48.60/ea Remove Quantity Remove £0.00	Quantity Remove	£48.60/ea	£0.00
56 x 45mmDP16409 £51.78/ea Remove Quantity Remove £0.00	Quantity Remove	£51.78/ea	£0.00

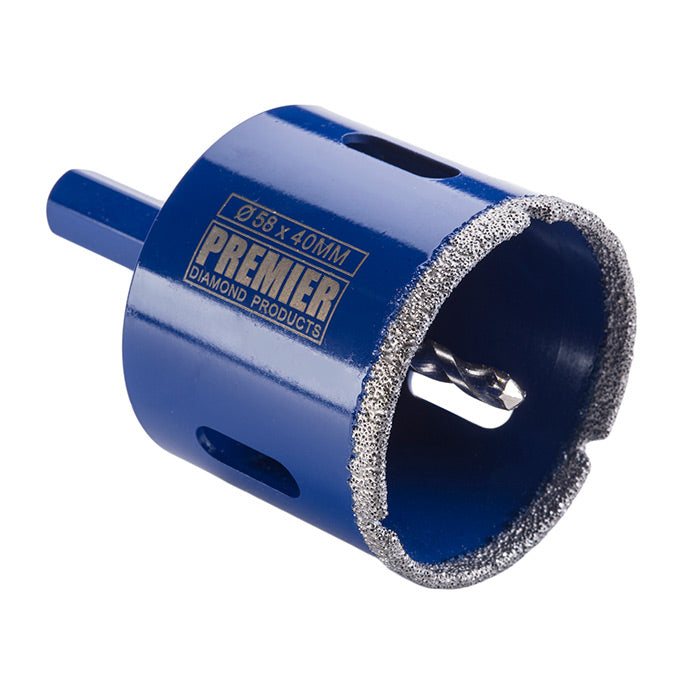

58 x 45mmDP16410 £54.04/ea Remove Quantity Remove £0.00	Quantity Remove	£54.04/ea	£0.00

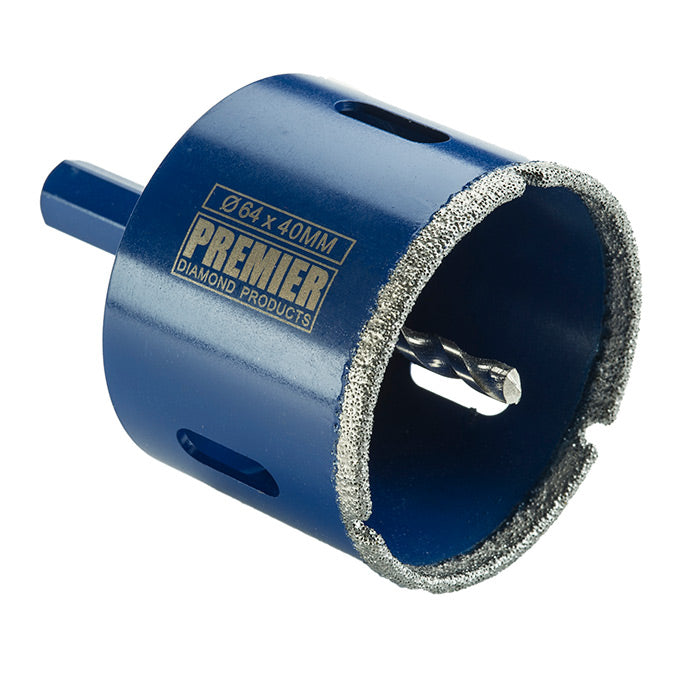

64 x 45mmDP16413 £59.56/ea Remove Quantity Remove £0.00	Quantity Remove	£59.56/ea	£0.00

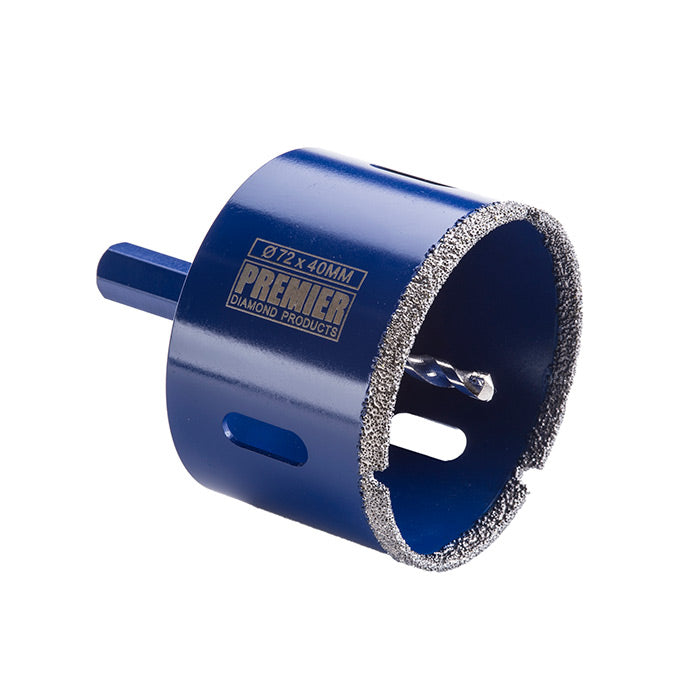

72 x 45mmDP16416 £66.94/ea Remove Quantity Remove £0.00	Quantity Remove	£66.94/ea	£0.00

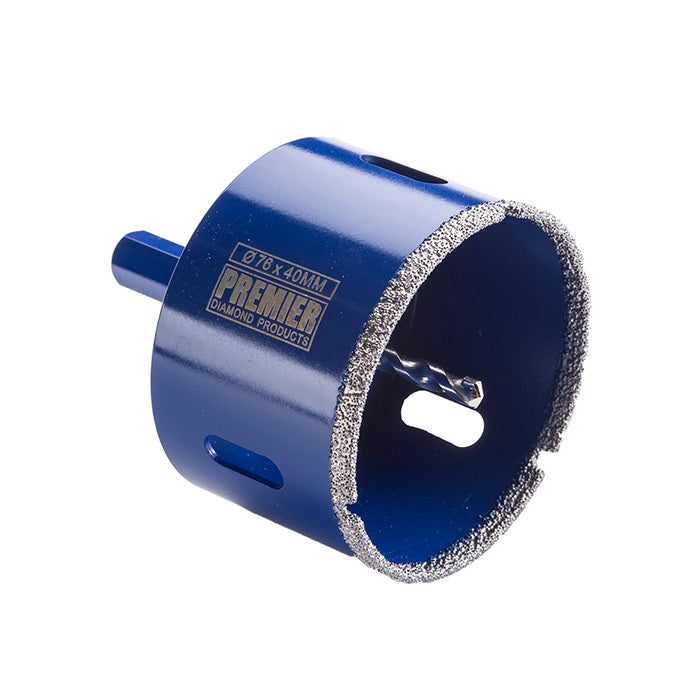

76 x 45mmDP16419 £70.58/ea Remove Quantity Remove £0.00	Quantity Remove	£70.58/ea	£0.00

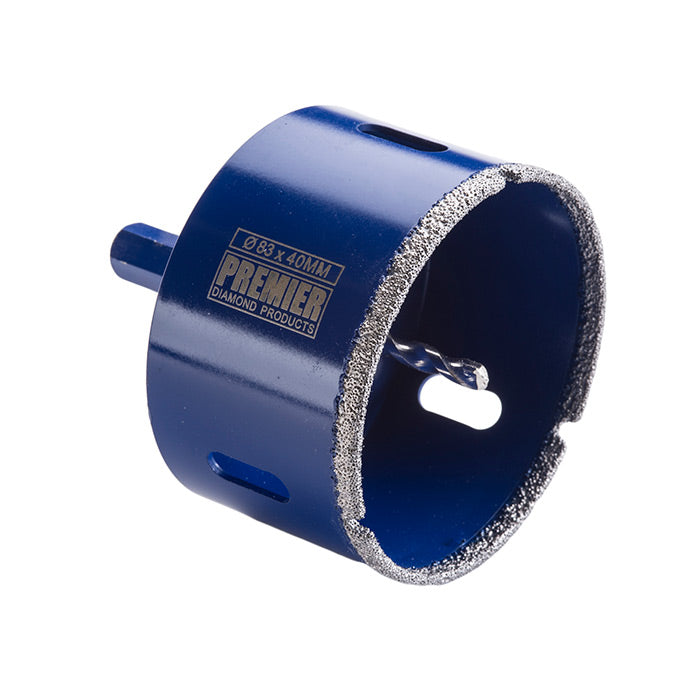

83 x 45mmDP16422 £75.76/ea Remove Quantity Remove £0.00	Quantity Remove	£75.76/ea	£0.00

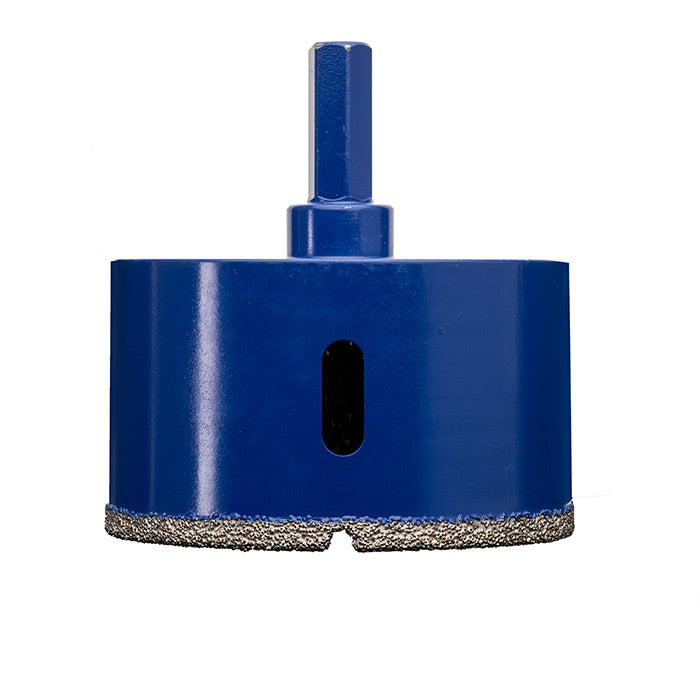

86 x 45mmDP16425 £79.62/ea Remove Quantity Remove £0.00	Quantity Remove	£79.62/ea	£0.00
92 x 45mmDP16426 £89.26/ea Remove Quantity Remove £0.00	Quantity Remove	£89.26/ea	£0.00

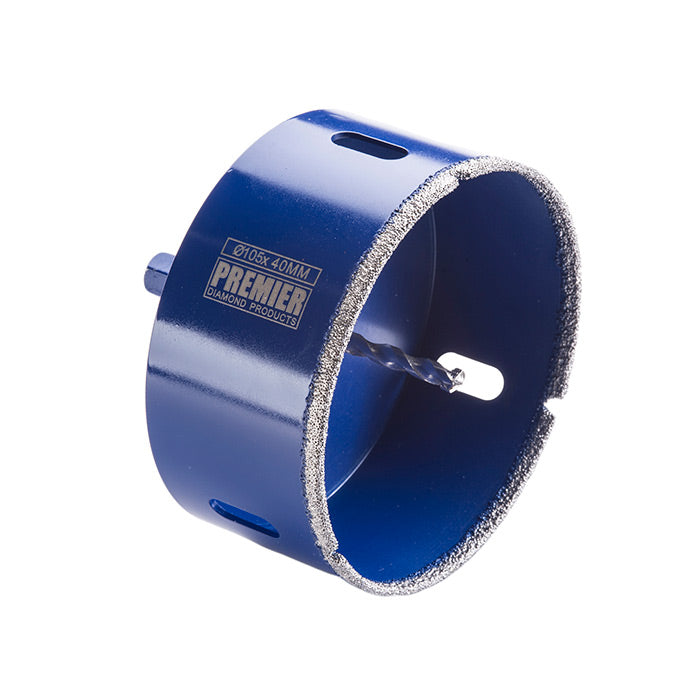

105 x 45mmDP16428 £97.62/ea Remove Quantity Remove £0.00	Quantity Remove	£97.62/ea	£0.00

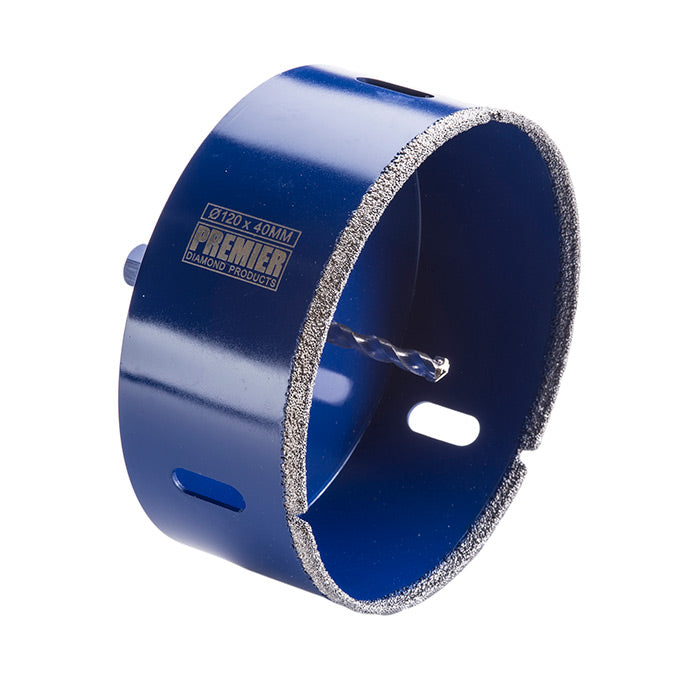

120 x 45mmDP16434 £111.22/ea Remove Quantity Remove £0.00	Quantity Remove	£111.22/ea	£0.00

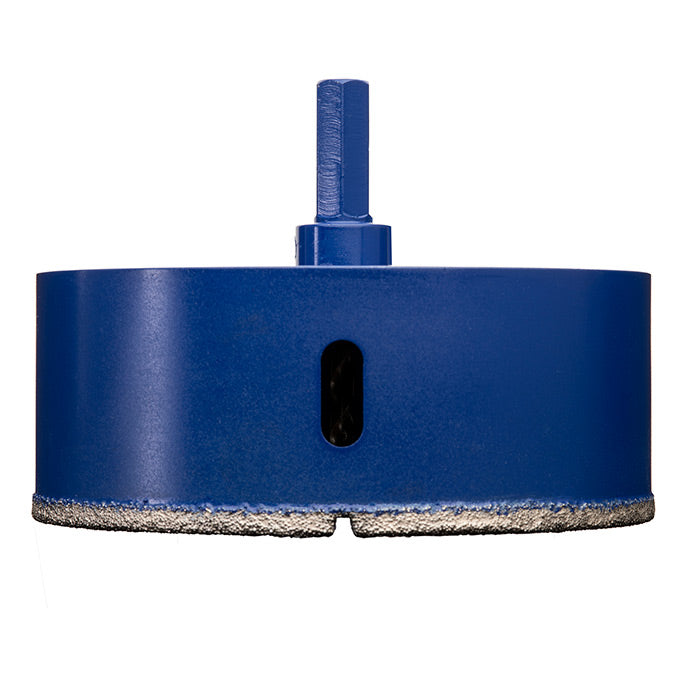

128 x 45mmDP16437 £116.62/ea Remove Quantity Remove £0.00	Quantity Remove	£116.62/ea	£0.00
Pilot DrillDP16447 £1.80/ea Remove Quantity Remove £0.00	Quantity Remove	£1.80/ea	£0.00
